4.3 Actions taken for a path error

When a path error is detected by HDLM, you must immediately resolve the error and restore the path.

A check for path errors is performed whenever an I/O is issued, or the Windows Plug and Play function detects that the paths are disconnected. If there are any paths through which I/O is not normally issued, such as a non-owner path, you should enable path health checking in order to detect errors regardless of I/O issuance. For details on detecting errors by using path health checking, see the HDLM manual.

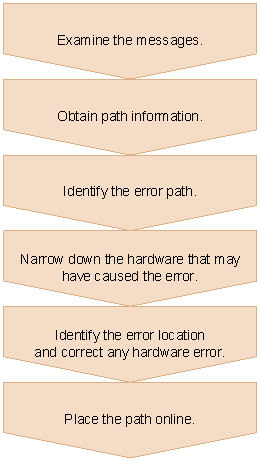

Figure 4-2 Troubleshooting procedure when a path error occurs shows the troubleshooting procedure when a message indicating that a path error has occurred is output.

Figure 4-2 Troubleshooting procedure when a path error occurs

You can perform the following procedures by using the HDLM GUI to handle a path error:

• Obtain path information
• Identify the error path
• Narrow down the hardware that may have caused the error
• Place the path online

The following sections describe the procedures you can perform by using the HDLM GUI to handle a path error.

Organization of this section

4.3.1 Obtain path information

4.3.2 Identify the error path

4.3.3 Narrow down the hardware that may have caused the error

4.3.4 Place the path online
