Hitachi Dynamic Link Manager Software GUI Help

1.2.1 About the Path Management window

Use the Path Management window to view path information and change path status.

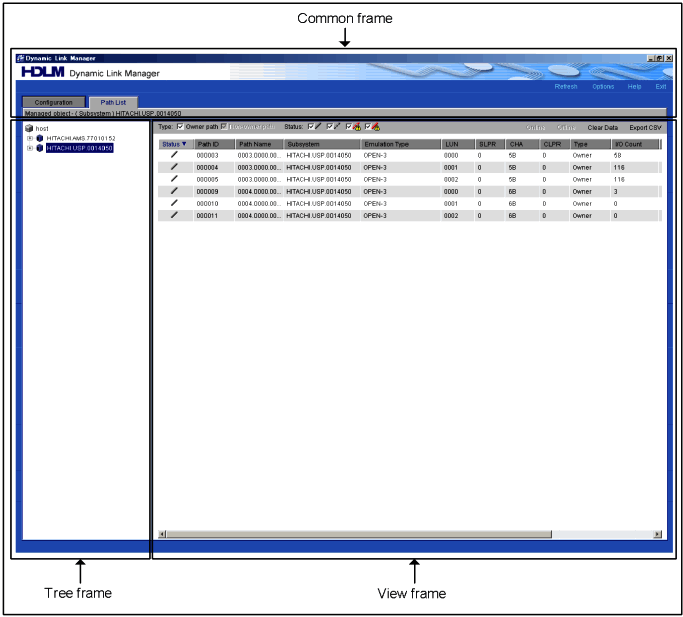

Figure 1-1 Path Management window shows the Path Management window.

Figure 1-1 Path Management window

The Path Management window consists of the following three frames as shown in Figure 1-1 Path Management window:

• Common frame
  Titles, logos, and buttons that are common to the HDLM GUI are displayed.
  For details on the Common frame, see 5.2.1 Common frame.

• Tree frame
  Storage subsystems or LUs (logical units) managed by a host are displayed in a tree structure.
  For details on the Tree frame, see 5.2.2 Tree frame.

• View frame
  The Configuration view or Path List view is displayed.
  For details on the configuration frame, see 5.2.4 Configuration view in the view frame. For details on the path list, see 5.2.3 Path List view in the view frame.
